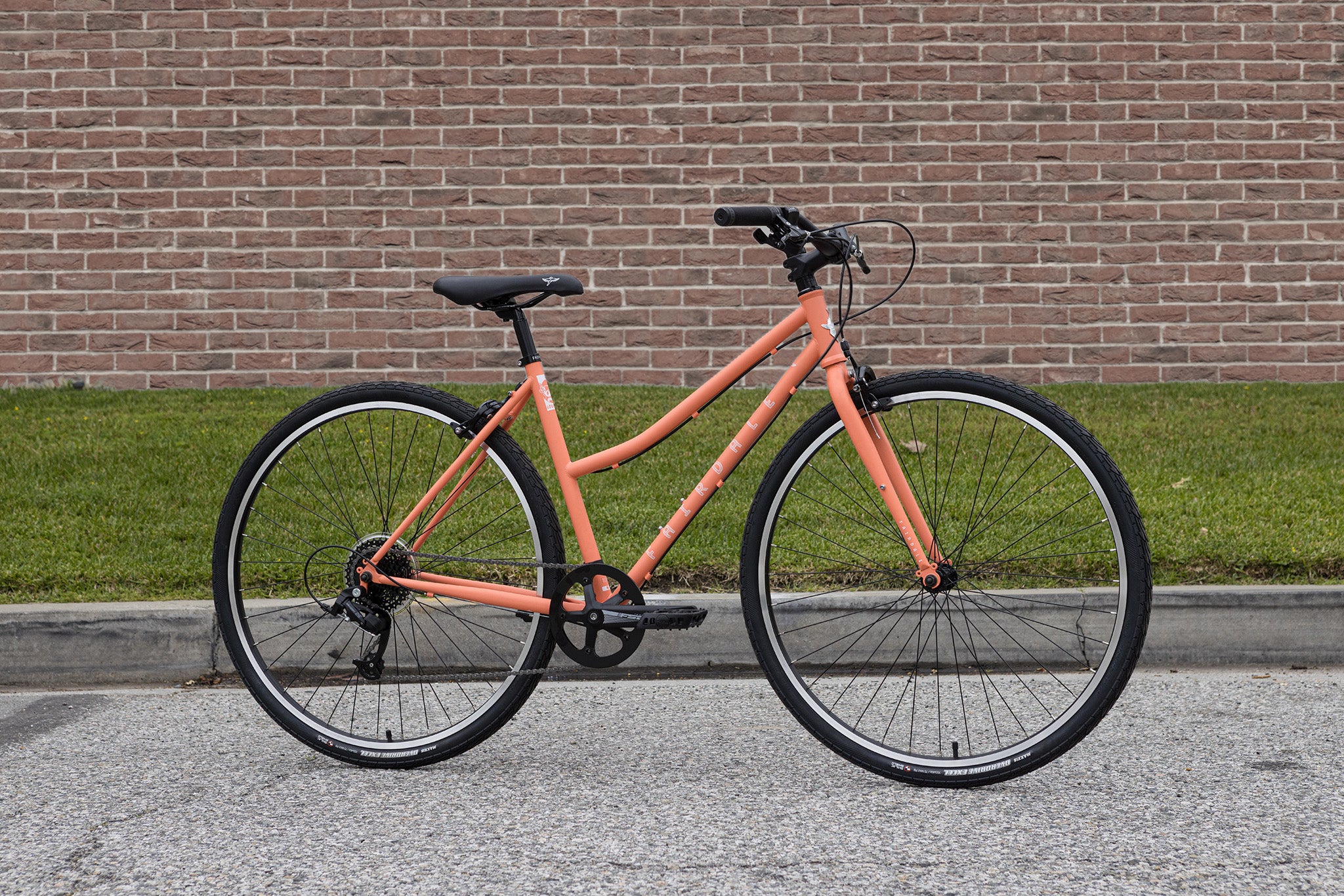

Fairdale Lookfar Step‑ThruMatte Coral Red in S/M

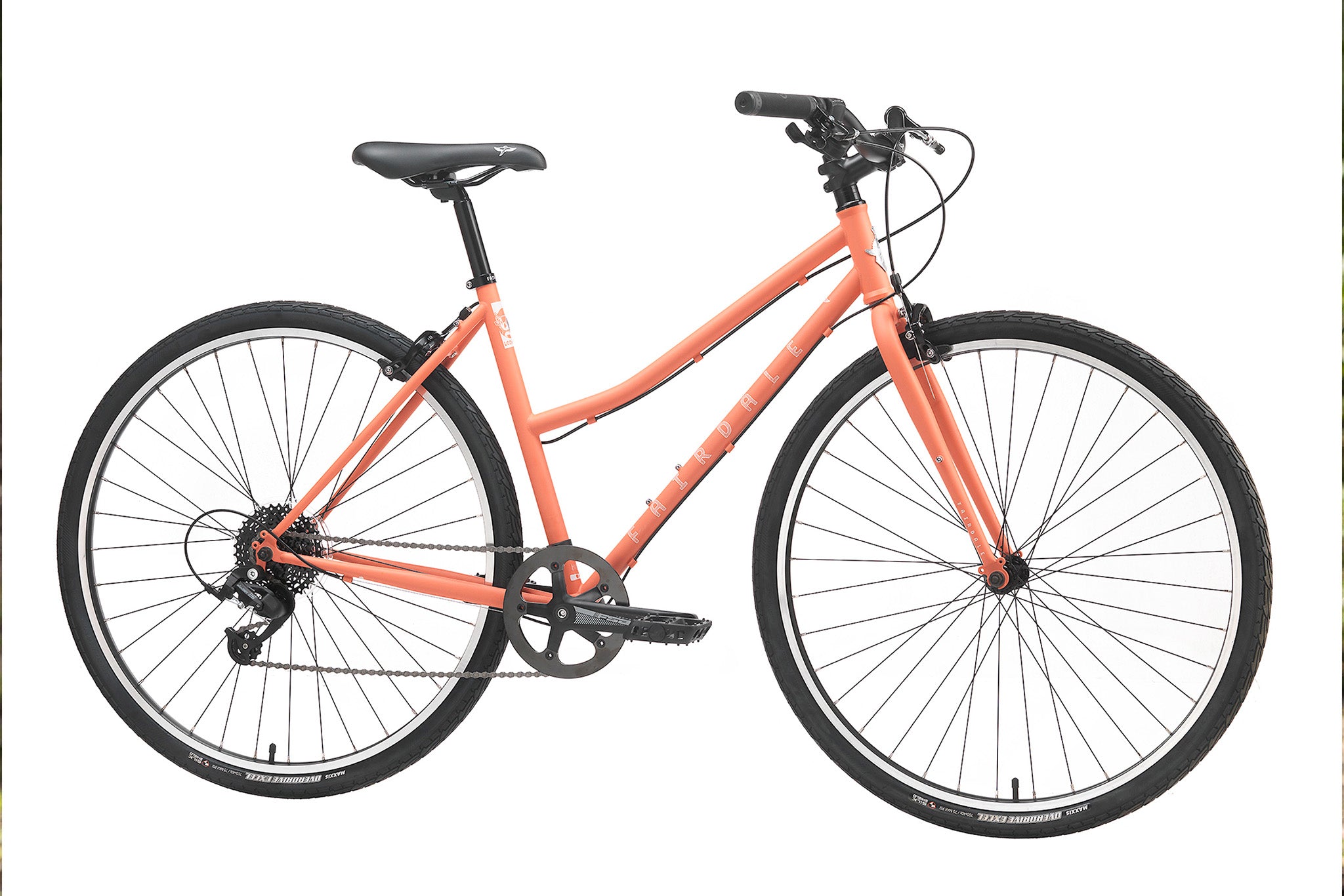

We're happy to announce that a step-thru model has been added back to our line up this year. We've had numerous requests for a step-thru bike and this all-new version is bound to be a crowd pleaser. A companion to our popular Lookfar, the Step-Thru provides more clearance for getting on and off the bike, especially when loaded with extra cargo, and it provides a very comfortable ride for cruising and commuting.
One simple trigger shifter changes the gears up-or-down through all 8-speeds, and the bike’s 40mm wide Maxxis tires feel fast on smooth ground while still confidently handling rougher terrain.
The Lookfar comes equipped with rack and fender mounts for lots of useful set-up options. We even chose to use normal Schrader valve tubes so you won’t need to use a special bike pump.
The Lookfar shares the same proven geometry as our ever-popular Weekender model.
Matte Coral Red is available in Small/Medium.
Sizing
Small/Medium: 5'2" - 5'8" height
Sizing is approximate. Please consult with your local bike shop to assist with fit.
Specifications

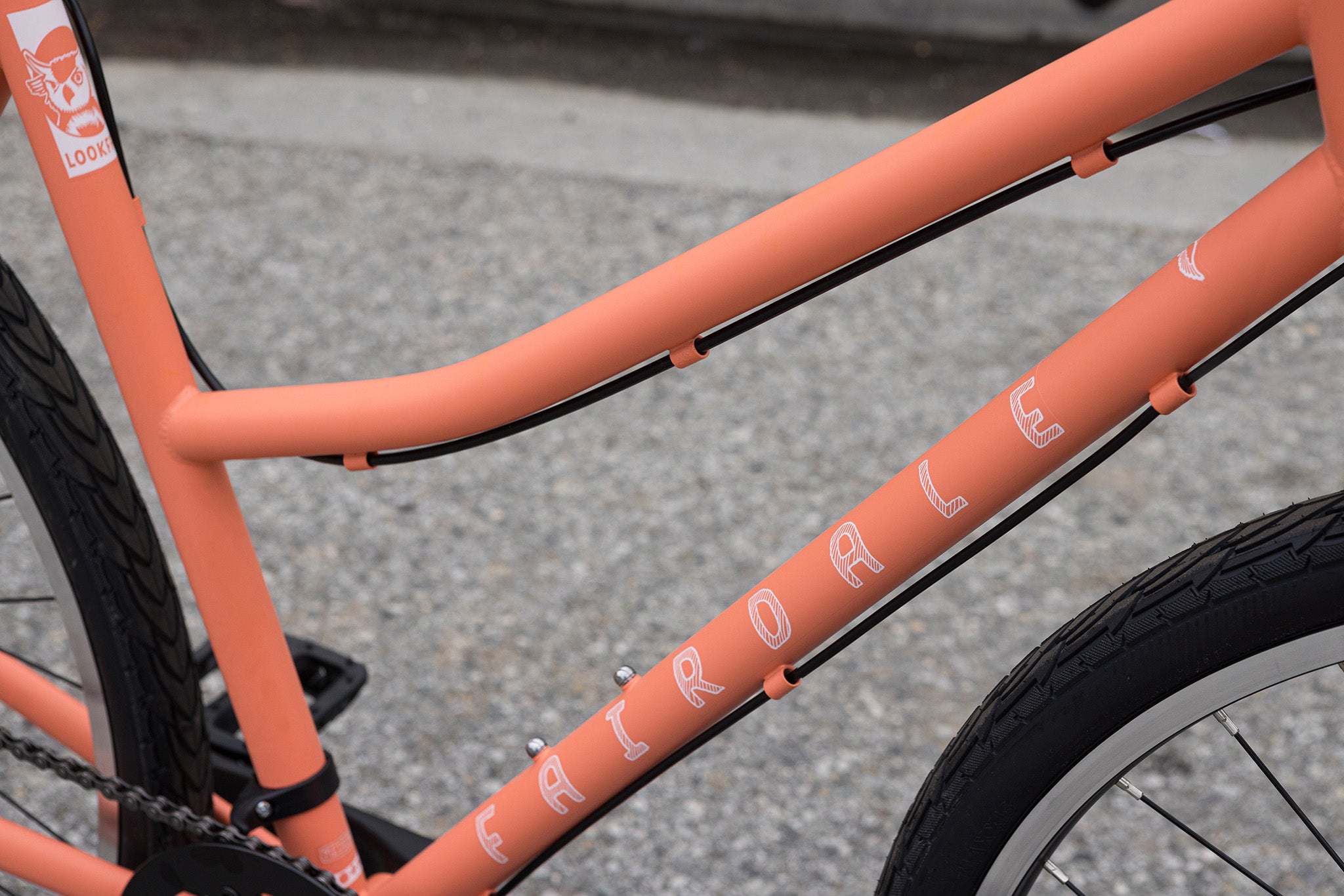

Frame: Step-Thru 1020 Steel, with Rack and Fender mounts

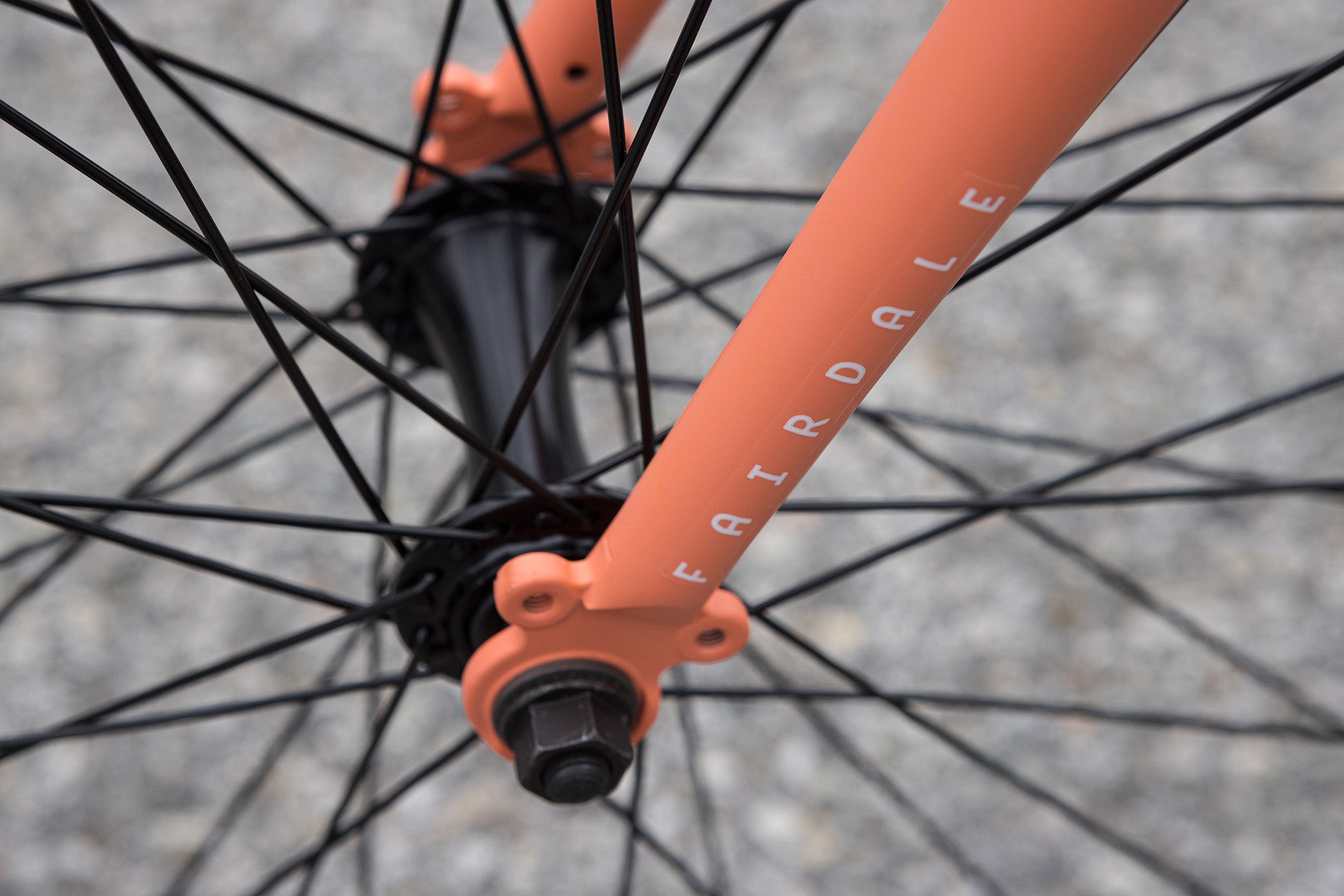

Fork: 1020 Steel, 1 1/8”

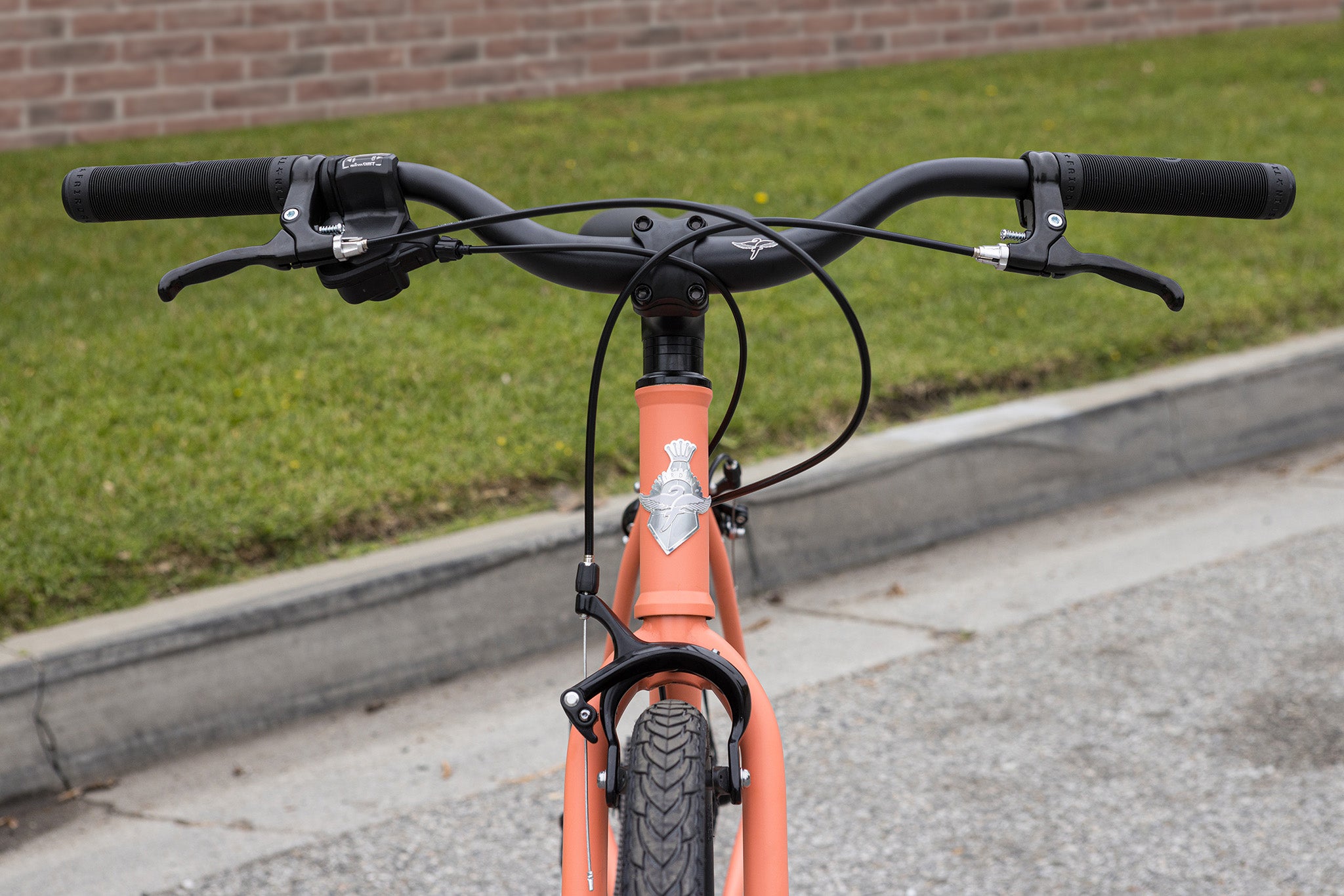

Handlebar: Fairdale Archer v3, Aluminum
Stem: 70mm, Forged Aluminum
Headset: FSA, Sealed Integrated, 45º/45º
Brake Lever: Aluminum, Short Pull
Brake: Aluminum, Dual Pivot, 55-75mm reach w/Quick Rels.
Grips: Fairdale Swan

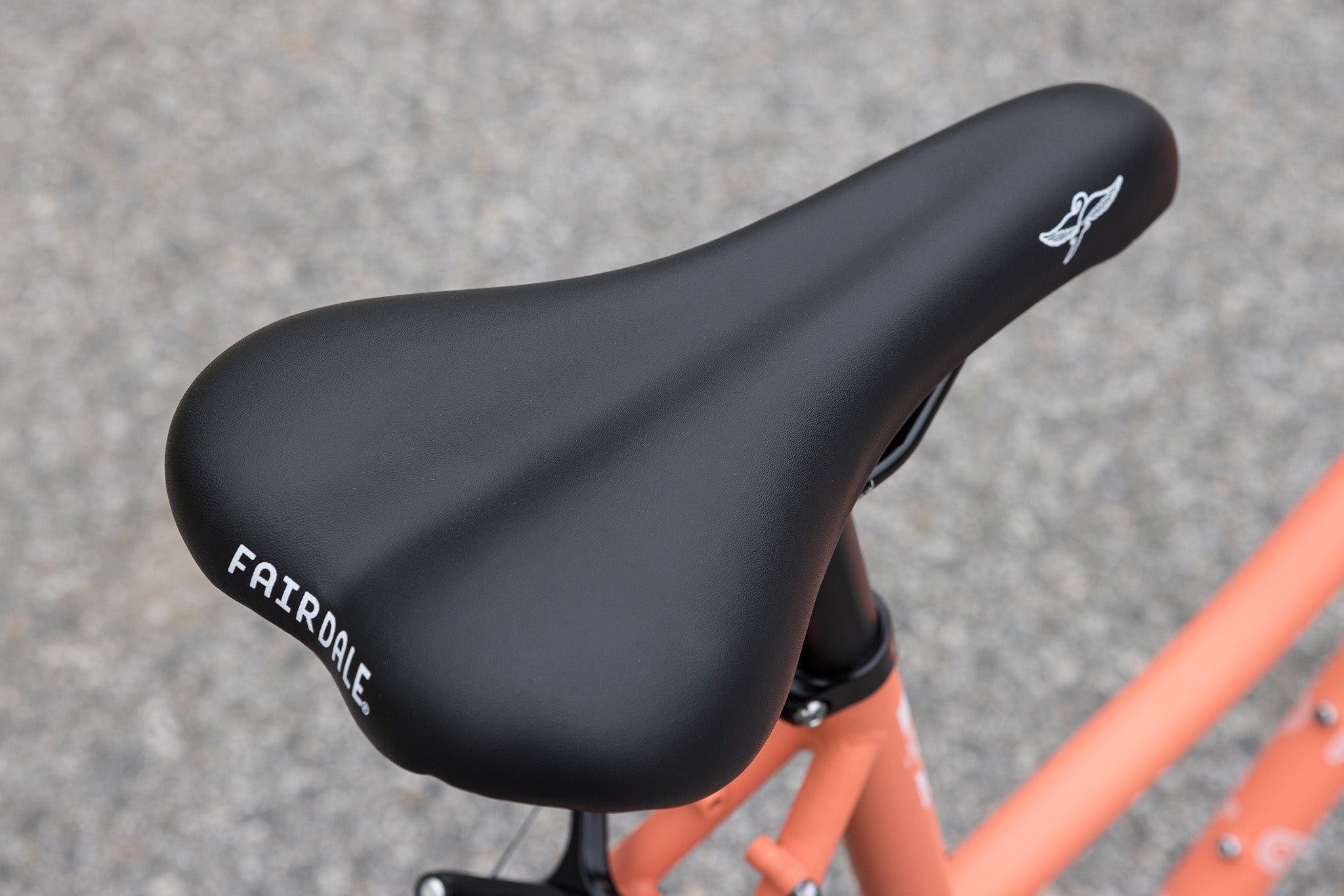

Saddle: Fairdale
Seat Post: Micro adjust, 27.2mm
Seat Clamp: Fairdale, 30mm
Cranks: FSA Tempo 1X (S=165mm, M=170mm, L/XL=175mm)
Chainwheel: 42t
BB Parts: FSA

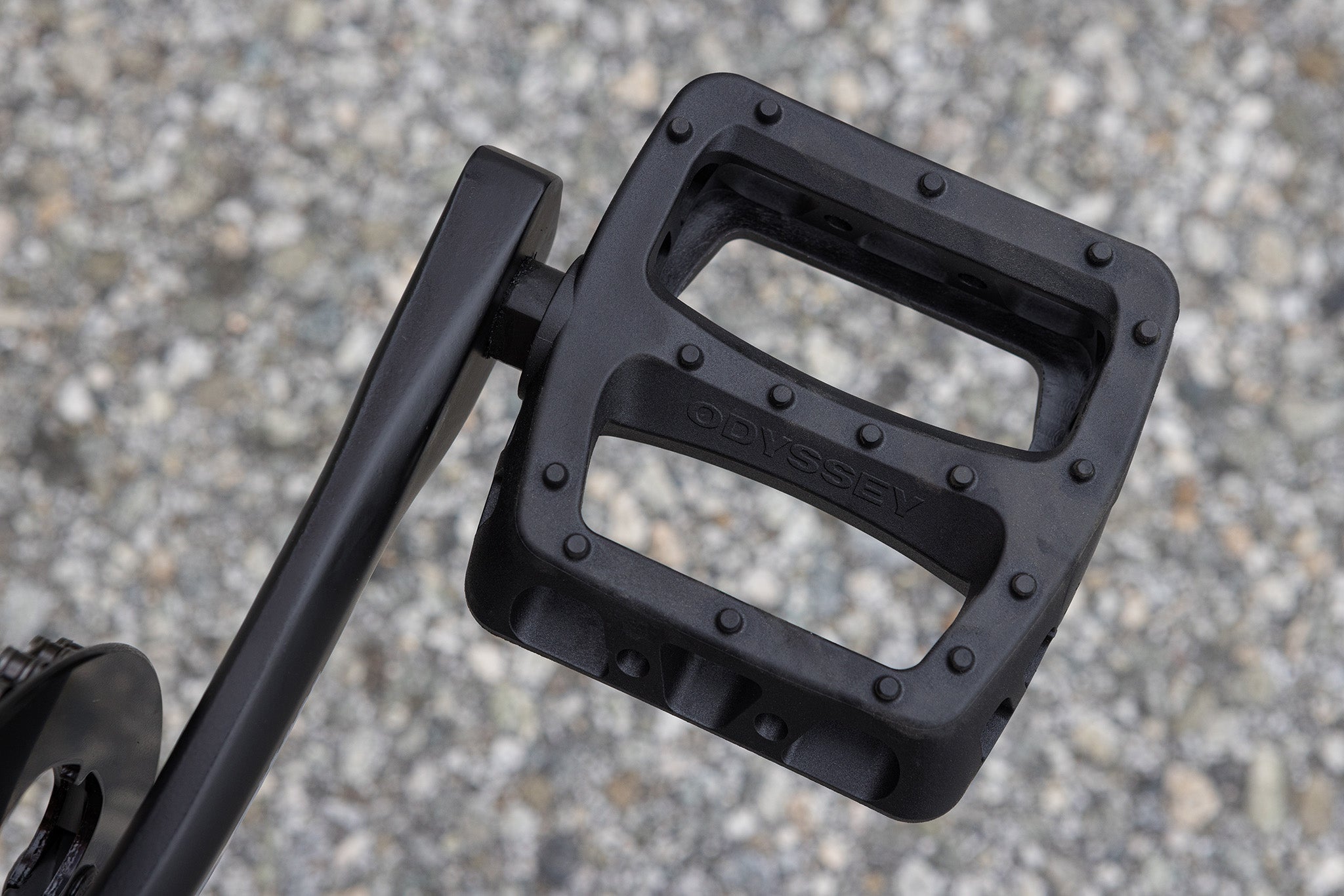

Pedals: Odyssey Twisted PC
Rims: 700c, 36-Hole, Schrader Valve, Aluminum
Front Hub: 36H, 3/8” Axle, Aluminum Shell, Looseball
Rear Hub: 36H, 3/8” Axle, 8-Speed Cassette, Looseball

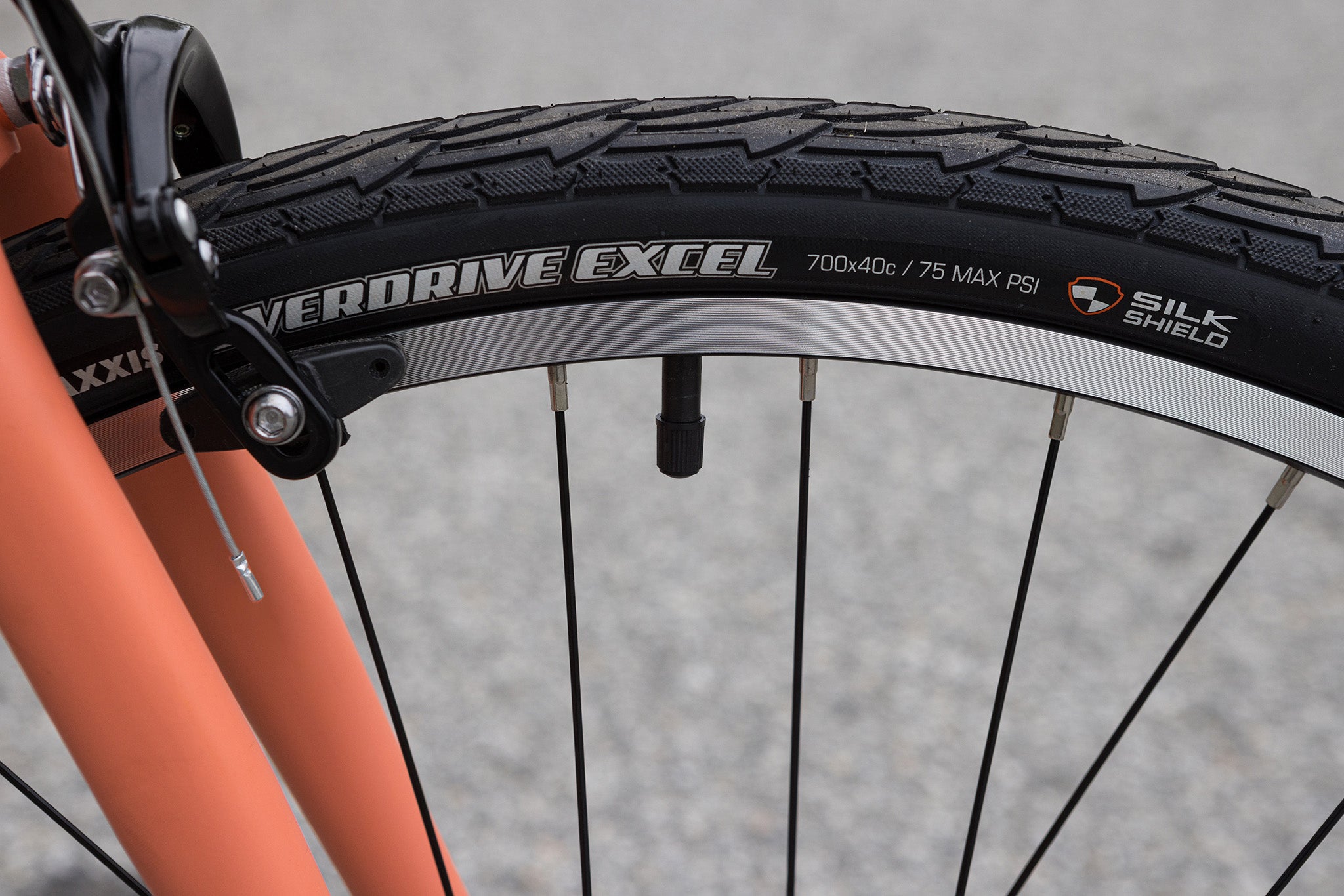

Tires: Maxxis Overdrive Excel 700c x 40mm
Chain: KMC Z8.1, 8-Speed
Cassette: MicroShift, 11-34T, 8-Speed

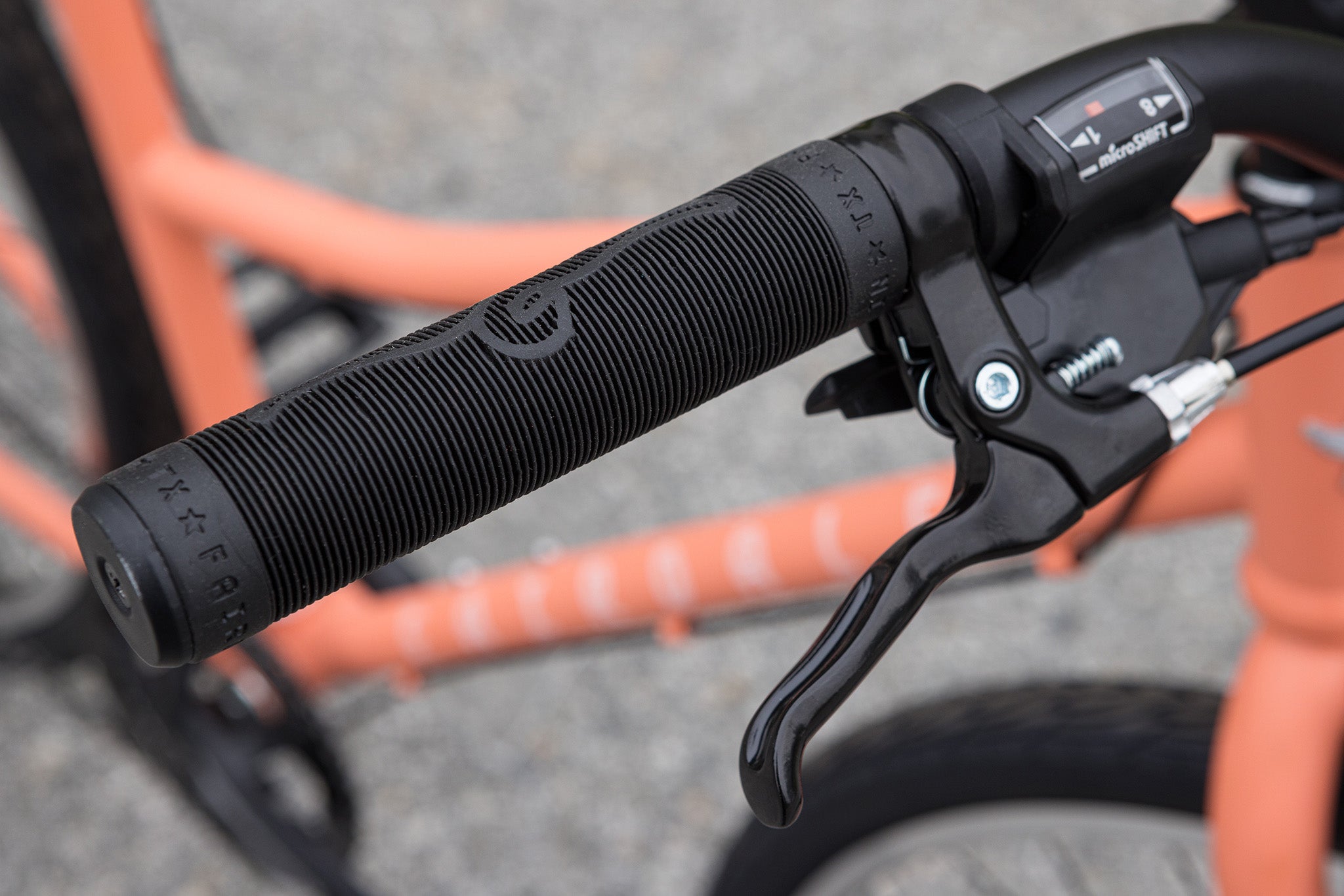

R. Shift Lever: MicroShift TS39-8R Trigger, 8-Speed
R. Derailleur: MicroShift RD-M26CS, 8-Speed
Shift Cable: Fairdale
Geometry
| Size | XS (49cm) | S (52cm) | M (55cm) | L (58cm) |
| Top Tube (Effective) | 508mm | 525mm | 552mm | 578mm |
| Top Tube (Actual) | 495mm | 507mm | 531mm | 559mm |
| Seat Tube (BB Center to TT Top) | 385mm | 436mm | 490mm | 538mm |
| Seat Tube (BB Center to TT Center) |
317mm | 370mm | 448mm | 496mm |
| Seat Tube Angle | 74.5 ° | 74° | 73° | 73° |
| Head Tube Length | 100mm | 120mm | 140mm | 160mm |
| Head Tube Angle | 69.6 ° | 70° | 71° | 72.5° |
| Chain Stay Length | 440mm | 440mm | 440mm | 440mm |
| Wheelbase | 1021mm | 1030mm | 1038mm | 1050mm |
| Standover | 698mm | 733mm | 780mm | 815mm |
| Stack | 521mm | 541mm | 564mm | 589mm |
| Reach | 363mm | 370mm | 379mm | 398mm |
| Fork Length | 401mm | 401mm | 401mm | 401mm |
| Fork Offset | 50mm | 50mm | 50mm | 50mm |
| BB Drop | 68mm | 68mm | 68mm | 68mm |
| Dropout Spacing | 135mm | 135mm | 135mm | 135mm |
| BB Type | English 68 | English 68 | English 68 | English 68 |
| Seat Post | 27.2mm | 27.2mm | 27.2mm | 27.2mm |
| Seat Clamp | 30mm | 30mm | 30mm | 30mm |
| Approx. Max Tire Width | 42mm | 42mm | 42mm | 42mm |
| Wheel Size | 700c | 700c | 700c | 700c |
*Specs subject to change without notice.
