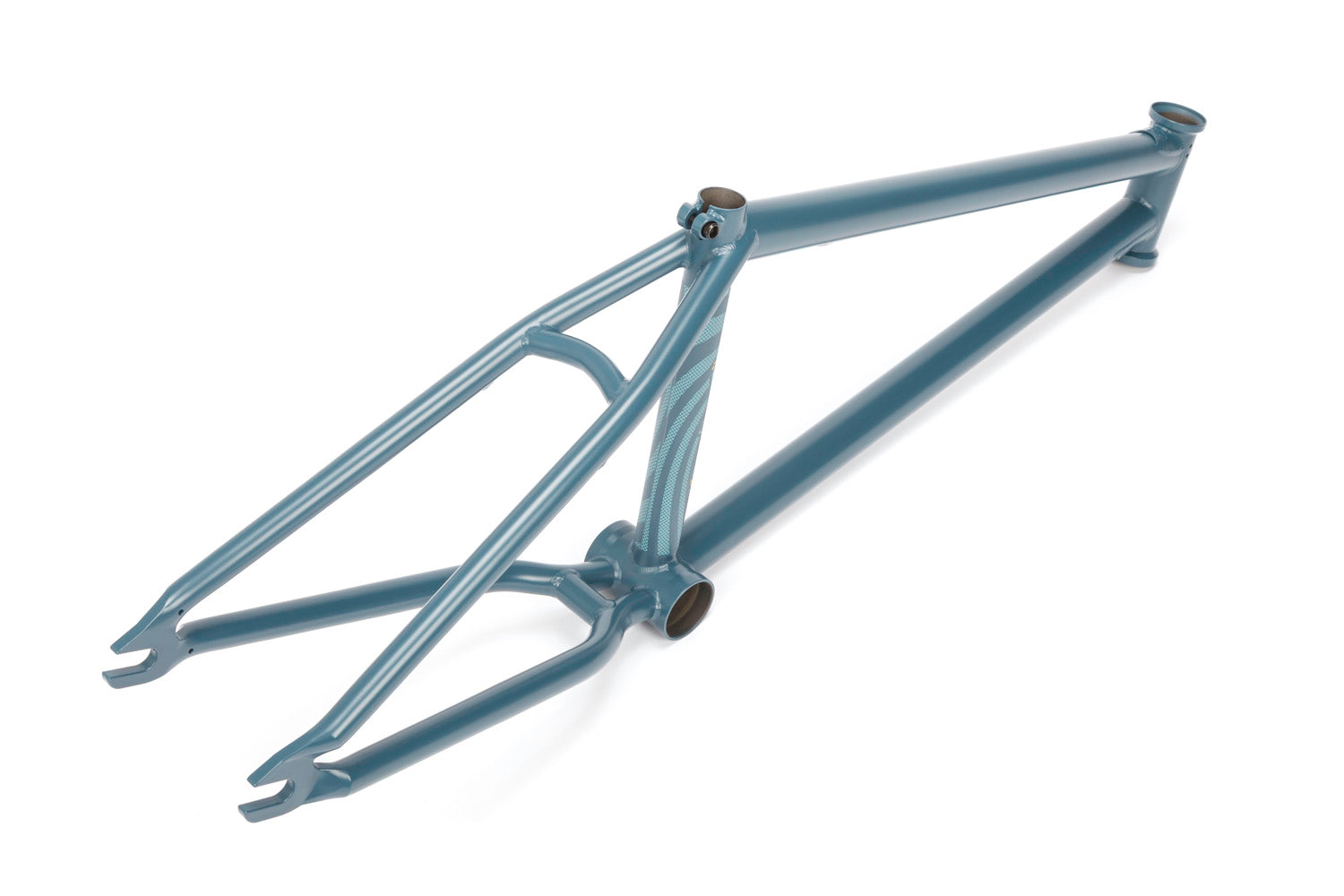

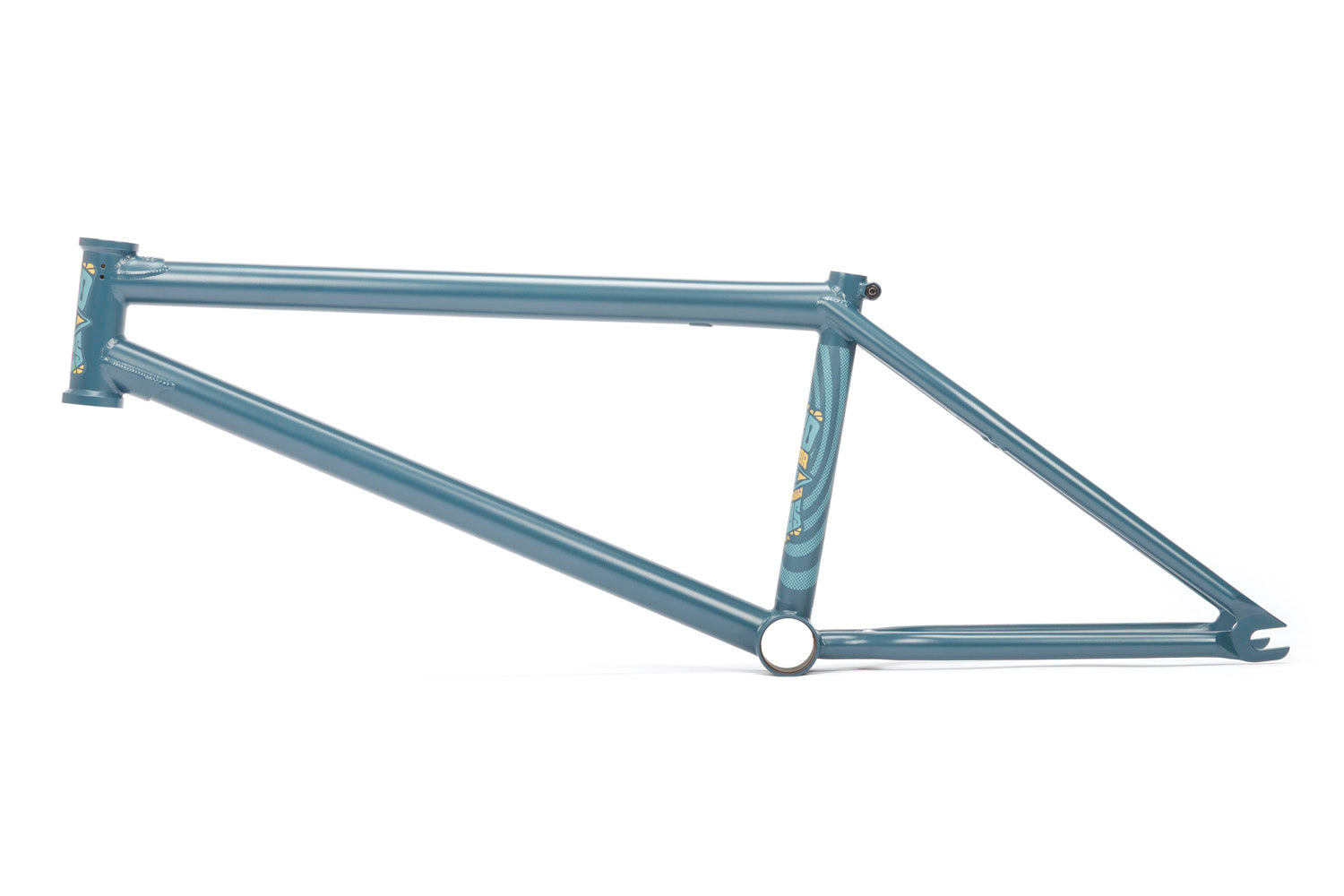

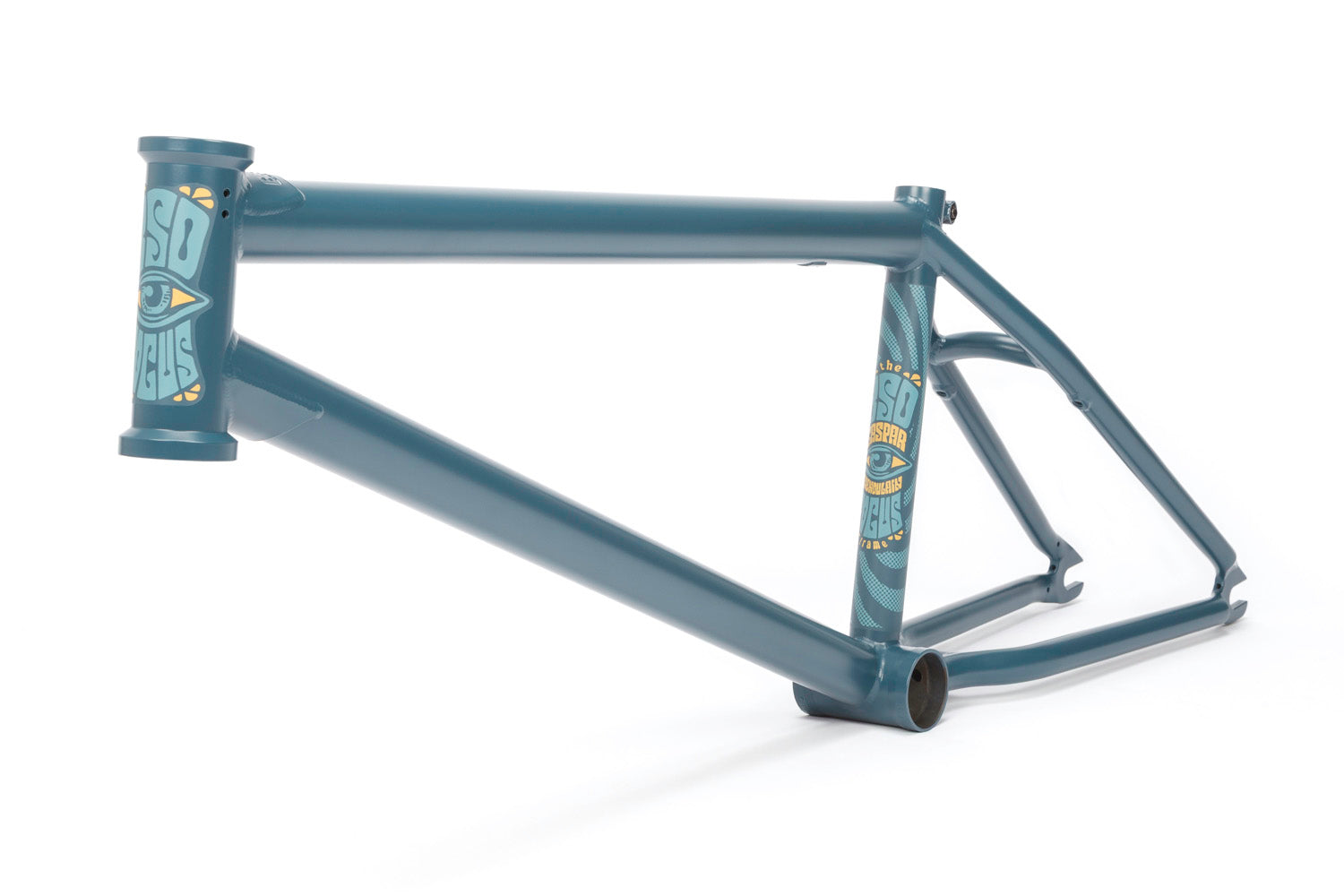

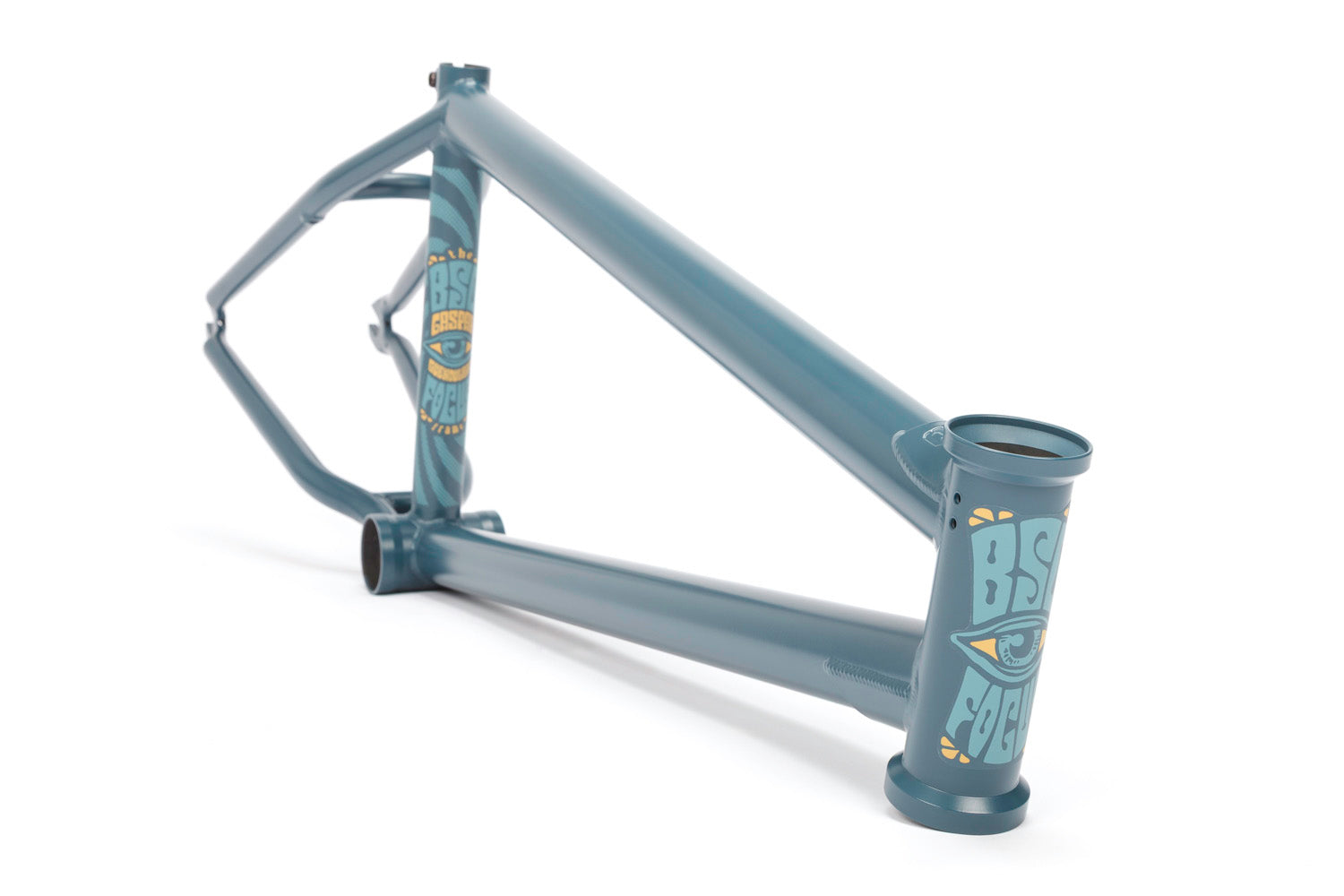

BSD Focus FrameDusk Blue
Introducing Gaspar Guendulain’s new signature frame. The Focus frame's geometry marks a significant departure from the typical trend of short street frames. With a 13.5 - 14” rear end, 10” standover, an angled forward 72 degree seattube angle to aid with pinching the seat on barspins and is available in toptube sizes up to 21.5” which is the length Gaspar rides.
Features
- Gaspar Guendulain signature
- Sanko Japanese seamless 4130 CrMo triple butted tubing

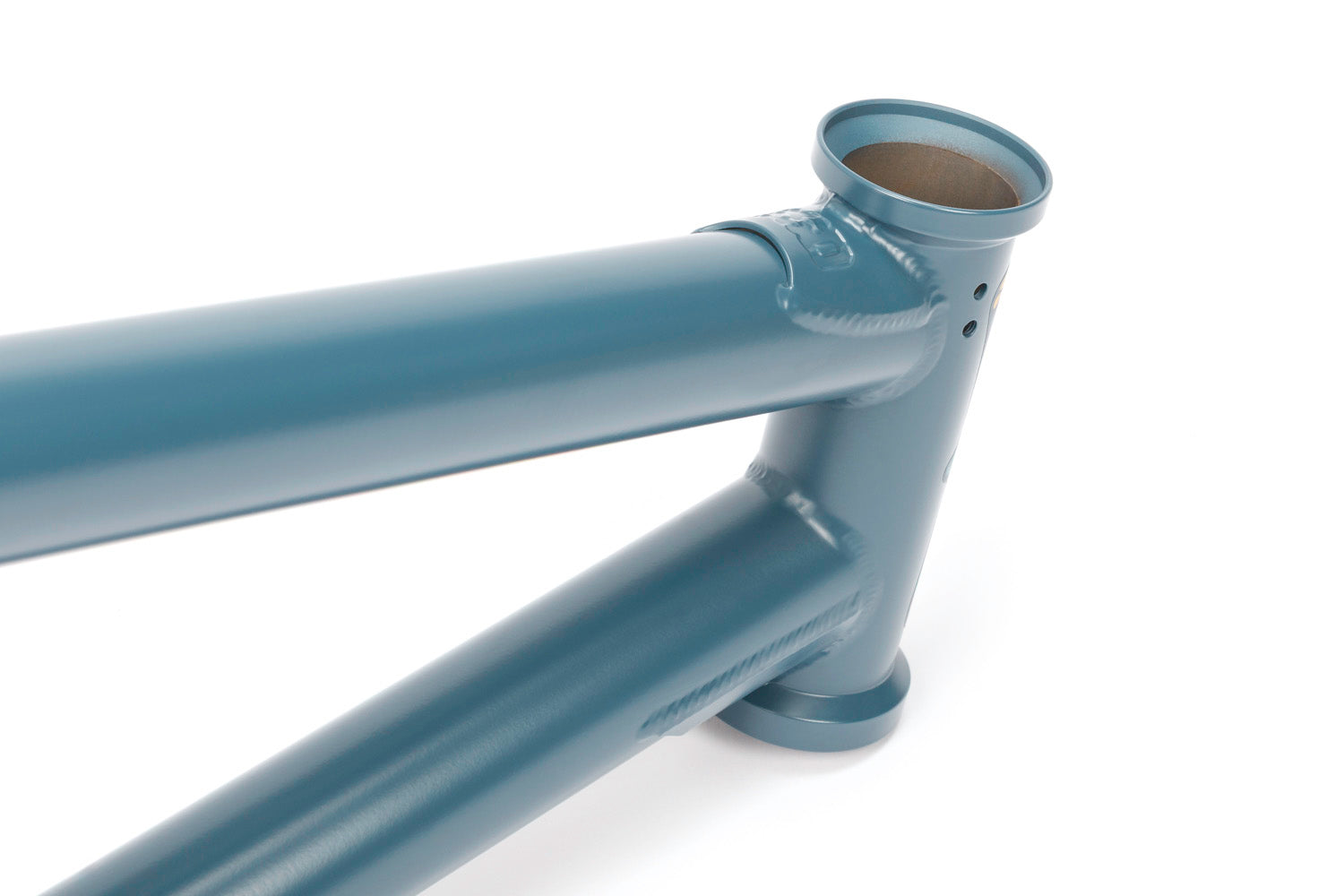

- External Gussets: On a frame, the highest concentration of stress occurs at the junctions between the headtube and toptube, and the headtube and downtube. To handle the pressures of modern riding, the required strength is achieved by reinforcing these areas with a combination of butted tubing and external gussets.
- Invest Cast Dropouts: Engineered for strength, our one-piece cast dropout is 7mm thick to provide superior axle support. The compact, grind-friendly design eliminates overhangs, reducing the risk of catching on ledges or rails. Heat-treated before welding for increased durability, it also features an integrated chain tensioner for reliable performance.
- 72° Seat Tube Angle: The 72° seat tube angle on the Focus frame places the seat further forward compared to a standard 71° angle, making it easier to pinch the seat for barspin tricks.
Specs
Top Tube Lengths: 20.8", 21", 21.2", and 21.5"
Head Tube Angle: 75.2°
Head Tube Length: 123mm
Seat Tube Angle: 72°
Chainstay Length: 13.5″ – 14″
BB Height: 11.7"
Standover: 10"
Weight: 5lbs
*BSD brake mount kit available separately.
